RKI Instruments

RP-3R Sample Draw Pump 81-1198

SKU:
81-1198
MPN:
81-1198
  • RP-3R Sample Draw Pump 81-1198
  • Sample Draw Pump 81-1198
  • RP-3R Draw Pump 81-1198
  • RP-3R Sample Draw Pump
  • RP-3R
$450.00
Frequently bought together:

Description

Clip-on Motorized Sample Drawing Pump for GX-3R (Pro)

The RP-3R are compact, battery operated, motorized sample drawing pumps which attach to either the GX-3R or the GX-3R Pro to change them from diffusion operation to sample drawing operation.
The model RP-3R pumps and the GX-3R or GX-3R Pro gas monitor make a complete solution for confined space entry.

The RP-3R is housed in a rugged plastic case with a quick disconnect fitting for hose attachment. It is provided with a 4″ tapered red rubber nozzle. A hose and probe are available as optional accessories. Hose lenghts of 10′ to 100′ are available. The probe is equipped with an internal dust filter and clear body for easy viewing. The RP-3R uses one AA battery and will operate for up to 10 hours in normal mode (higher flow mode) with an optional ECO mode (lower-flow mode) that can last up to 16 hours. The pump quickly and firmly snaps onto the GX-3R or GX-3R Pro gas monitor and is easily removed when sampling is complete. No tools are required.

A push button POWER switch is used to activate the RP-3R, and the POWER LED illuminates when the RP-3R is on. If a low flow condition occurs, the FLOW LED flashes and an audible alarm will sound.

The POWER LED flashes if low battery occurs.

Features:

  • Attaches to the GX-3R or GX-3R Pro in seconds
  • Compact and lightweight
  • 10 hours of operation in normal mode (higher flow mode)
  • 16 hours of operation in lower-flow mode (ECO mode)
  • Audible and visual alarms for low flow and low battery conditions
  • Pilot light to confirm operation
  • Quick disconnect fitting for hose connection
  • Hoses available up to 100′ length
  • Includes 4″ tapered red rubber nozzle, AA alkaline battery, and hydrophobic filters
  • Rugged and proven RKI reliability
  • Two options available (RP-3R or RP-3R Pro)

Specifications

Flow Rate:

  • Higher flow mode: 0.5 l/m
  • Lower flow mode (ECO mode): 0.35 l/m

Alarm Display:

  • Low flow alarm: Flow blinks YELLOW
  • Low battery alarm: Power LED blinks GREEN

Power Supply:

  • 1 AA alkaline battery
  • Higher flow mode: 10 hours

Continuous Operation:

  • Lower flow mode (ECO mode): 16 hours

Operating temperature:

  • -4° F to + 122° F (no sudden change)

Operating humidity:

  • range 95% RH or less (without condensation)

External Dimensions:

  • 3.23″ (W) x 3.78″ (H) x 1.14″ (D) (body only)

Weight:

  • 4.58 oz

Explosion Proof:

  • Intrinsically safe construction
  • ATEX/IECEx, Exia II CT 4 Ga

Standard Accessories:

  • 4″ tapered red rubber nozzle, AA alkaline battery,
  • & hydrophobic filters

Optional Accessories:

  • 10′ – 100′ hose, 10″ probe with dust filter

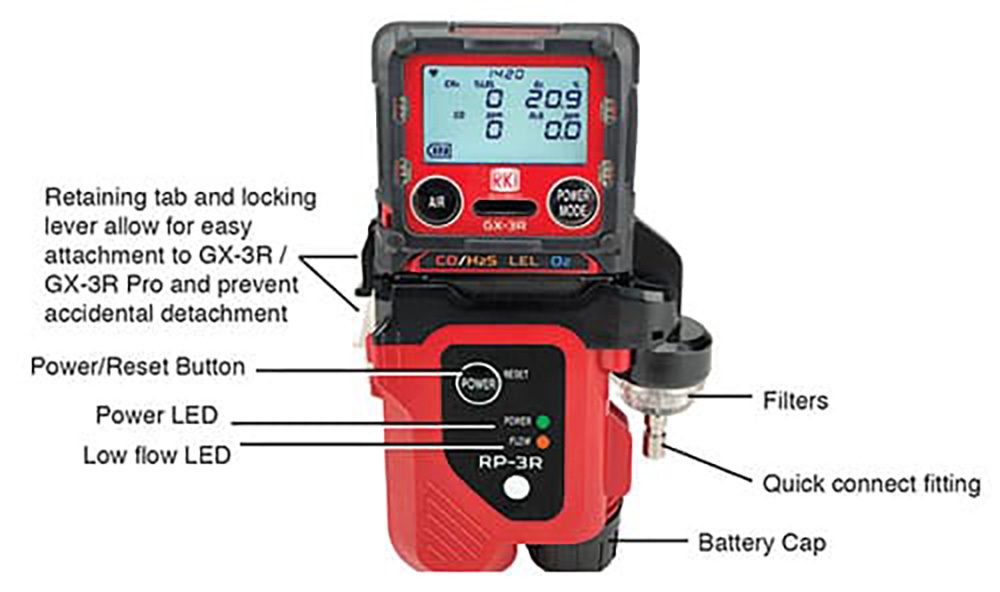

rp-3r-parts.jpgParts

Part Numbers

  • 81-1197 RP-3R pump for GX-3R
  • 81-1198 RP-3R pump for GX-3R with 10 ft hose, and 10 inch probe
  • 81-1198-20 RP-3R pump for GX-3R with 20 ft hose, and 10 inch probe
  • 81-1198-30 RP-3R pump for GX-3R with 30ft hose, and 10 inch probe
  • 81-1199 RP-3R Pro pump for GX-3R Pro
  • 81-1200 RP-3R Pro pump for GX-3R Pro with 10 ft hose, and 10 inch probe
  • 81-1200-20 RP-3R Pro pump for GX-3R Pro with 20 ft hose, and 10 inch probe

Downloads

RP-3R Datasheet • RP-3R Manual
